OEM ODM Biodiesel Production Equipment Base Catalyzed Bio Diesel
Plant
Bio-diesel plant
Bio-diesel is a renewable energy source. It is made from
vegetableoil and animal oil by catalysis reaction. In fact, not
only the oilplants such as soya and rapeseed, but also the scrap
cooking oil(subsurface channel oil, hogwash oil) in hotel and
restaurant, livinggarbage, used plastic, old tyre, straw and so on
can used to producebio-diesel.
As a green regenerated energy source, bio-diesel is important
toenvironment care. It has wide used foreground. Our technology
ofproducing bio-diesel including 3 kinds:
1.The technology of producing bio-diesel by acidifying oil
(subsurface channel oil, hogwash oil)
The acidifying oil has plentiful of fatty acid (the content isabove
40~60%). If react directly, the reaction process is long
anddifficult to react every inch. So firstly we use the technology
offractional distillation to separate the acidifying oil into
neutral oiland fatty acid by the process of depickling. Secondly,
go along withester-interchange reaction by adding methanol alcohol
and actalescentcatalyst in neutral oil , adding methanol and acidic
catalyst. After thetwo reactions it can gain bio-diesel and plant
asphalt by fractionaldistillation.
The technique has widely used in all kinds of raw materials.
Theproduct is high quality and yield percentage. It is environment
caredand energy saved.
2. The technology of producing bio-diesel by animal / vegetable oil Animal/vegetableoil is a high-quality oil and fat. It includes few
free fatty acid (thecontent is little than 2%). It can gain crude
methyl ester and itsby-product crude glycerin by ester-exchange
reaction of adding methylalcohol and alkalescene catalyst. It can
gain bio-diesel after crudemethyl ester is distilled by short-path.
After the crude glycerin ispretreatmented, short-path distilled, it
can gain glycerin used inindustry and medicine. Thetechnique is the same with high-quality raw material
ofanimal/vegetable oil. The product is high quality and yield
percentage.It is environment cared and energy saved.
3. The technology of producing bio-diesel by rancidity oil
In the rancidity oil, some oil and fat is ranciditied, so there
issome free fatty acid. At first, the acid catalytic reaction is
adapted,then adopt alkalinous catalytic reaction after the free
fatty acidreacted completely. The free fatty oil become methyl
ester after addingpyro alcohol and concentrated sulfuric acid under
definite temperature(65~68℃). After the reaction of methyl ester,
the sodium methylate ismade of pyro alcohol and NAOH. It can gain
fatty acid methyl ester andit's by-product glycerin after the fat
and oil and measurable pyroalcohol ester exchanged by the
alkalinous catalyst of sodium methylateunder definite temperature
(65~68℃).

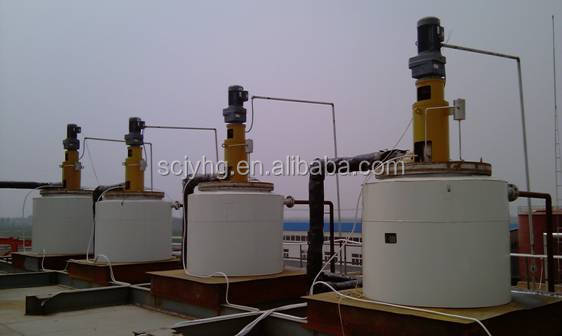

Projects

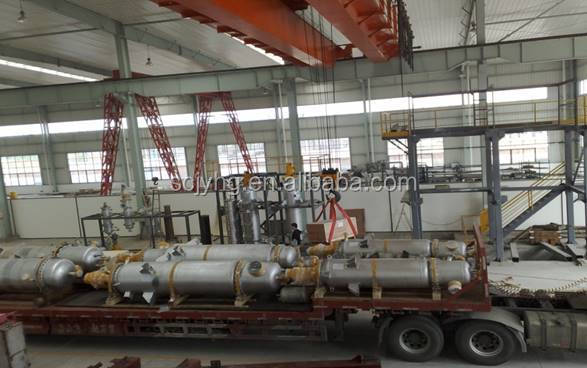

Packaging & Shipping
Meet the requirements of overseas export goods packaging
Our Services
For the plants we design, FOREVER will provide the technology
services and trainings.
Design and manufacturing the main devices, design or stocking of
secondary devices.
Documents for the design and device.
Manufacture, delivery, assembly and commissioning of turnkey plants
as well as components.
Testing for engineering and performance.
Maintenance and repair for the devices.
Receiving the messages about the client's trouble indistillation
system, FOREVER will reply and provide the settled projectwithin 24
hours. If necessarily, we will do our best to send anexperienced
service engineering within 72 hours. For the product weprovided, we
will provide materials and spare parts cost-freely withinguarantee.
Sichuan Forever Chemical Engineering Technology Co.,Ltd.
Sichuan Forever Chemical Engineering Technology Co., Ltd. was
established in 2004 with a registered capital of 35 million RMB,
and held by Sichuan Forever Investment Holding Group Co., Ltd., The
company is a military-into-civilian high-tech enterprise
specialized in R&D, designing, manufacturing, and selling of
intellectual equipment and process design of separation technology
in chemical engineering projects, as well as general contracting.
With the newly separation technology, we have been able to
accomplish the research and process development of liquid mixture
separation crafting technologies such as molecular distillation,
falling film evaporation, high-efficiency rectification,
multi-effect evaporation, MVR distillation, supergravity
distillation and vaporization membrane/film distillation, etc.
Meanwhile, we have successfully developed the process crafting
package and industrial integrated application solutions with
proprietary patent rights, in sections like LCD panel stripping
liquid regeneration, isopropanol aqueous solution distillation,
methanol aqueous solution distillation, waste mineral oil
regeneration, Fischer-Tropsch wax refining, fish oil ethyl ester
refining, harmless treatment of high-toxic organic wastewater and
the bio-diesel producing.
We adhere a tradition from our past as a military enterprise, and
that is the “make perfection more perfect” principle. Besides, with
the advanced and reliable production quality control systems and
highly competent staff teams, as well as the rich experience of
industrial application and engineering project implementation, we
are capable of offering a range of products and services with
proprietary patent rights. Those of which include the core/main
equipment, laboratory device, complete set of project equipments
and turnkey plant that can be widely used into electronic waste
solvent disposal and regeneration, waste mineral oil comprehensive
utilization and material separation and refining, etc.
