Waste oil regeneration/waste oil regeneration system

Waste mineral oil refers to mineral oil that has been oxidized, polluted by impurities or affected by heat, and has lost its physical and chemical properties and must be replaced. There are various types of common waste mineral oils, such as waste internal combustion engine oil, waste engine oil and waste transformer oil.
Our solution will be to obtain feedstock base oils by separately evaporating and then refining light components such as light biodiesel and other feedstock base stocks.
The process adopts the method of combining re-purification and refining. First, we remove the solid
Mechanical particles and water are physically removed from the used oil, then we eliminate
Light oils are extracted from pretreated lubricating oils through a fractionation column. Finally, we apply the advanced
Molecular distillation technology under high vacuum conditions allows us to obtain
Regenerated oils that function close to natural base oils.

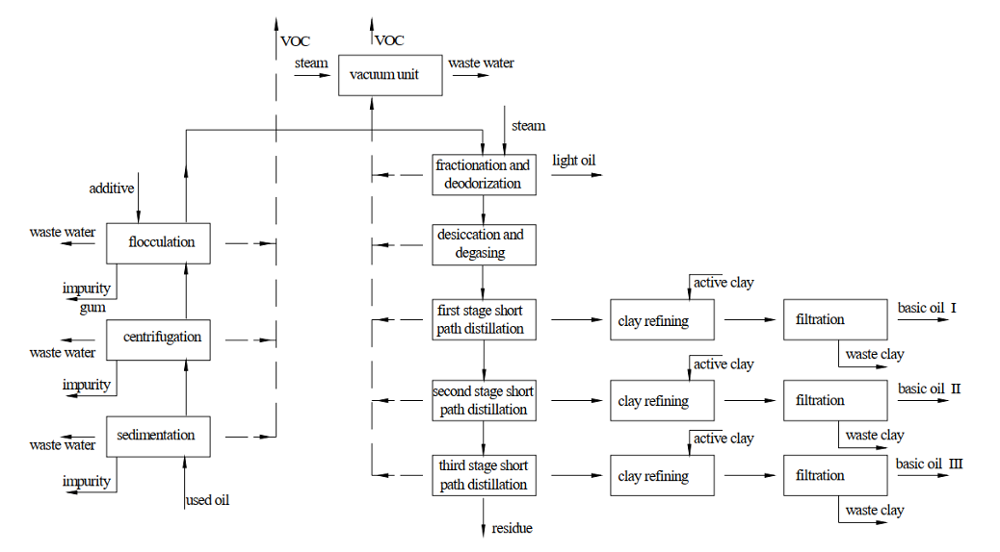

Process description
(1) Pretreatment unit
The pretreatment is necessary for most used oil recycle. Firstly, the most water and
mechanical impurities was roughly removed by natural sedimentation for some time at
special temperature, and then we use the centrifugation separator to remove more water

and impurities before the used oil is sent to next unit. If the used oil is very bad, we will use
the flocculation to remove some gum, pitch and reduce the acid value.

(2) Distillation unit
This unit is the core process. Firstly, in order to get good quality base oil, the pretreated
oil is sent to one or two special tower, the odor and light oil is removed by these towers, and
then the oil is sent to flash vessel at high vacuum before short path distillation in order to
remove surplus volatile compound. We normally use two or three short path distillatory to
get several base oil which viscosity degrees is also different, of course, there are different
operating vacuum and temperature in each short path distillatory, we suggest three stage
short path distillatory should better be used in your plant in order to get high product yield at
10,000 TPA throughput capacity.

(3) Clay refining unit
The different base oil form distillation unit is sent dividedly to different decolourization
vessel which is operated at special temperature and vacuum, and some active clay will be
added into vessel depending on the quality of input base oil, after some time, the base oil
with active clay is sent to filtration machine, and then we get the final base oil with good
color and stable quality.

Poject in Saudi Arabia

Project in Zibo, Shandong, China

Project in Malaysia

• Design and manufacturing the main devices, design or stocking of secondary devices.
• Documents for the design and device.
• Manufacture, delivery, assembly and commissioning of turnkey plants as well as components.
• Testing for engineering and performance.
• Maintenance and repair for the devices.
• Receiving the messages about the client's trouble indistillation system, FOREVER will reply and provide the settled projectwithin 24 hours. If necessarily, we will do our best to send anexperienced service engineering within 72 hours. For the product weprovided, we will provide materials and spare parts cost-freely withinguarantee.
• Training of customer's staff

Sichuan Forever Chemical Engineering Technology Co., Ltd. was established in 2004 with a registered capital of 35 million RMB, and held by Sichuan Forever Investment Holding Group Co., Ltd., The company is a military-into-civilian high-tech enterprise specialized in R&D, designing, manufacturing, and selling of intellectual equipment and process design of separation technology in chemical engineering projects, as well as general contracting.

With the newly separation technology, we have been able to accomplish the research and process development of liquid mixture separation crafting technologies such as molecular distillation, falling film evaporation, high-efficiency rectification, multi-effect evaporation, MVR distillation, supergravity distillation and vaporization membrane/film distillation, etc. Meanwhile, we have successfully developed the process crafting package and industrial integrated application solutions with proprietary patent rights, in sections like LCD panel stripping liquid regeneration, isopropanol aqueous solution distillation, methanol aqueous solution distillation, waste mineral oil regeneration, Fischer-Tropsch wax refining, fish oil ethyl ester refining, harmless treatment of high-toxic organic wastewater and the bio-diesel producing.

We adhere a tradition from our past as a military enterprise, and that is the “make perfection more perfect” principle. Besides, with the advanced and reliable production quality control systems and highly competent staff teams, as well as the rich experience of industrial application and engineering project implementation, we are capable of offering a range of products and services with proprietary patent rights. Those of which include the core/main equipment, laboratory device, complete set of project equipments and turnkey plant that can be widely used into electronic waste solvent disposal and regeneration, waste mineral oil comprehensive utilization and material separation and refining, etc.
